Full Collaboration Meeting Solution Support Both Wired HDMI And Wireless Casting

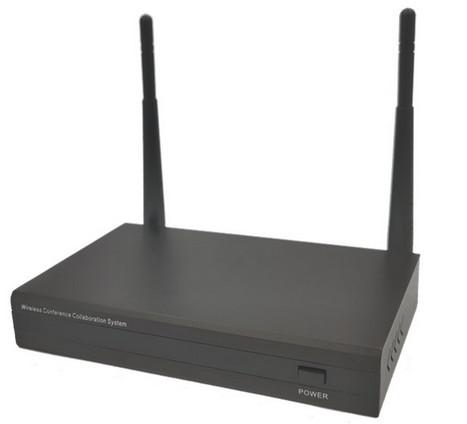

WPH-10 is our 1st wireless presentation product that providing wired access to legacy source with HDMI interface, that means people can choose wireless casting ways for easy and convenient presentation, meantime available to connect with some sources for fixed or high quality output, for example it will perfectly work in a conference room or classroom with room PC installed.
Add to an existing room setup or integrate with other wireless media systems for a true smart room experience. Occupancy sensors for opening / closing rooms, touch screens for easy collaboration, and mobile room controls. WPH-10 is suitable for business environment. It's easy to provision, manage, and deploy across the organization.
Systems also can connect to Chromebooks and other types of devices, such as Blu-ray players and digital cameras, where the buttons can take the HDMI content directly from the device and enable a wireless presentation without any extra software.
Product Specifications
| Wired connection | HDMI 2.0 in | √ | Wireless casting | Airplay | √ |
| Miracast | √ |
| HDMI 2.0 out | √ | App for different OS | √ |
| USB-A 2.0 | 2 | USB disk | √ |
| LAN (100 M) | 1 | HDMI dongle | √ |
| PoE | √ | Type-C dongle | √ |
| Audio out | 1 | 1080P in | √ |
| Antenna | 2 | video frame rate | 20-60 fps |
| Latency | 130ms |
| Collaboration | Wireless touch back | √ | Control | OSD control | √ |
| Whiteboard annotation | √ | 3rd party control | √ |
| Remote view | √ | Management platform | Batch configuration | √ |
| Security | Dynamic Wi-Fi password | √ | Batch upgrade | √ |
| Data encryptionecr | AES&RSA | User manager | √ |
Key Features:
1. Wired 1x HDMI 2.0 input.
2. Wireless inputs options with Airplay, App and dongles.
3. App casting with desktop, files, windows options.
4. 1x HDMI 2.0 output.
5. Support remote view and reverse control of shared content from BYOD devices.
System Diagram:
Application
Suite to conference room or classroom need both wired and wireless connections, for example wired connection with legacy sources like room PC or media box. Packed-full features making it an affordable solution for classrooms, huddle spaces and meeting rooms. WPH-10 can connect to your display via HDMI or VGA outputs offering up to 1080p presentations, there’s even an audio jack for secondary audio system support.
Company introduction
Grastron's wireless media series, dedicated to providing the simplest BYOD presentation, collaboration and video conferencing experience in working and learning spaces.Compared with traditional pro A/V connection in working and learning spaces, wireless presentation system not only eliminates the messy cables to keep the table clean, it also encourages collaboration between attendees and make the meeting/learning more productive, and due to the easy-to-use, easy-to-deploy, easy-to-management attributes, wireless presentation system has been widely used in enterprise, education schools in recent years, more and more brands are investing in this solution both from pro AV and IT industry.
